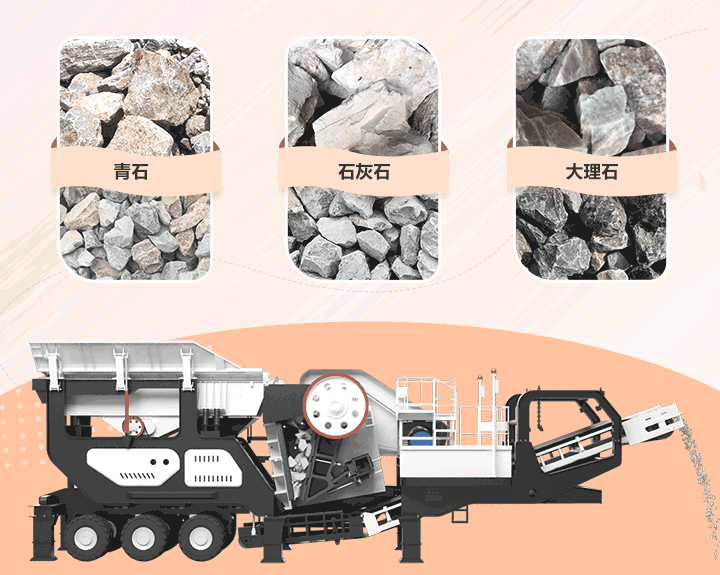

Jaw type Tire Mobile Crushing Station adopt advanced heavy-ship design, the whole structure is stronger, the operation is more stable. The main equipment can choose P6S series European jaw crusher, PE series jaw crusher, P6S series European hydraulic impact crusher, etc. The crushing ratio is large, which is the first choice of primary crushing. The main equipment can be P6S series European jaw crusher, PE series jaw crusher, P6S series European hydraulic impact crusher, etc. With their large crushing rate, they are the best choice of primary crushing
inquiry now
Leave Message
Product Introduction
Jaw type Tire Mobile Crushing Station adopt advanced heavy-ship design, the whole structure is stronger, the operation is more stable. The main equipment can choose P6S series European jaw crusher, PE series jaw crusher, P6S series European hydraulic impact crusher, etc. The crushing ratio is large, which is the first choice of primary crushing.
The main equipment can be P6S series European jaw crusher, PE series jaw crusher, P6S series European hydraulic impact crusher, etc. With their large crushing rate, they are the best choice of primary crushing
Working Principle
The material enters the cavity and falls on the high-speed rotating movable impact hammer head, and the material is initially broken in the hammer impact area through the action between the hammer impact and the impact plate. After being repeatedly hammered and counterattacked at high frequency, the material falls on the middle partition to form accumulations and slips, falls on the throwing tray of the lower rotor rotating at high speed, and is thrown to the counterattack plate at high speed to collide and fall. And the mobile blow bar is forced to counterattack, crush and grind. Therefore, the material is crushed, washed and ground many times in the process of falling by its own weight, so as to achieve the effect of fine crushing.
Performance advantages
Our company's mobile stations all adopt high-quality thickened steel frame structure to protect the smooth operation of the mobile crushing station and prolong the service life of the equipment.
Compact ship design for frame chassis Adopt compact ship design for frame chassis, the transportation length is shortened effectively, the flexible parking function is designed, which can save more time for the quick arrival site.
Independent lift hydraulic outriggers Each outrigger can be lifted independently, which can effectively avoid the deviation caused by uneven supporting ground and uneven strength.
Better mobility Steering traction shaft, small turning radius, flexible, easy to road transport and into work site, provides a more flexible working space.
Energy-efficient The materials are processed on-site, which greatly reduces the transportation cost of materials.
Flexible and adaptable The diversified configuration, from single application to multiple applications, could form different crushing and screening system according to customer needs.
Technical Parameters
Project
|
MJ-E69 | MJ-E75 | MJ-E912 | MJ-C106 | MJ-C116 |
Transport size(L*W*H) (mm) |
11900×2550×3650 | 13100×2550×4450 | 14600×1950×4500 | 12810×2260×3500 | 15400×1950×4500 |
Max size(L*W*H) (mm)
|
12100×2900×4060 | 13300×2950×4810 | 14600×3300×5300 | 12810×4080×3950 | 15400×3300×5700 |
Weight(T) |
39 | 57 | 83 | 36 | 65 |
Configuration of tires |
double axles |
triaxial |
triaxial axles |
triaxial |
triaxial |
Crusher model |
PE600*900 | PE750*1060 | PE900*1200 | C106 | C110 |
Max Feeding Size (mm) |
480 | 630 | 750 | 600 | 720 |
Discharge port adjustment range (mm) |
65-160 | 80-140 | 100-200 | 75-225 | 150-275 |
Capacity(t/h) |
90-180 | 110-320 | 220-450 | 150-500 | 300-650 |
Vibrating Feeder Model |
GZD960*3800 | GZD1100*4200 | GZD1300*4900 | GZD1100*4200 | GZD1100*4500 |
Main belt model |
B800*8.5M | B1000*9M | B1200*9.5M | B1200*9.5M | B1200*9.5M |
Model of side outlet belt (optional) | B450*3M | B1000*9M | B1200*9.5M | B1000*9.5M | B1200*9.5M |
Model of Generator set (optional) | 160KW | 200KW | 220KW | 250KW | 300KW |
Iron remover model (optional) | RCYD(C)-6.5 | RCYD(C)-8 | RCYD(C)-10 | RCYD(C)-8 | RCYD(C)-10 |

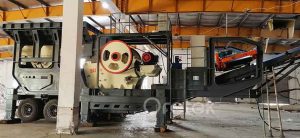

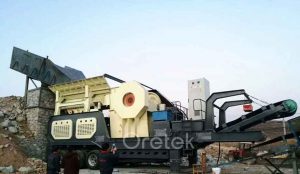

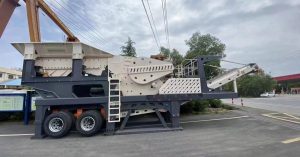

Product Image
Jaw type mobile crushing plant is a new type of rock crusher, which greatly expands the conceptual field of coarse crushing operations. Its design purpose is to stand on the customer’s standpoint, to solve the obstacles brought by the crushing site and the environment to the customer’s crushing operation, and to provide customers with low-investment project operation hardware facilities.

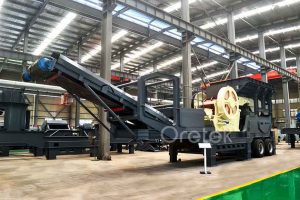

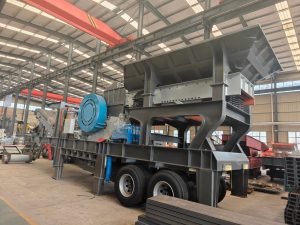

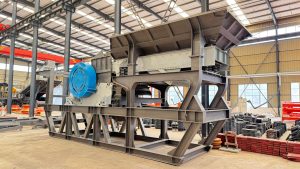

Mobile Primary Jaw Crusher Station factory
Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.
Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
