Product Introduction
V6S new sand making machine is a crushing equipment with lower unit cost, higher crushing efficiency and intelligent operation control. It was developed on the original VSI series sand making machine combined with the actual operate experience under different working conditions and the feedback suggestions of the operator.
By improving feeding mode, optimizing crushing chamber type, adopting new rotor design, adding lifting device and so on, the machine can significantly reduce the material flow resistance, improve the material passing capacity, reduce the wear rate of wearing parts, improve the energy utilization rate, prolong the maintenance cycle, shorten the maintenance time consumption. Now it has become a representative high performance crushing sand equipment in sand making machine.

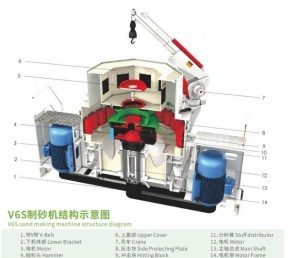

Working principle
Performance advantages
Large capacity The improved feeding mode makes its feeding process constant and easy to adjust. higher main shaft speed and greater crushing chamber increased the V6S series sand making machine’s capacity in actual production.
Lower wearing parts consumption The optimized crushing chamber makes the best impact angle and significantly reduces friction of wear parts, which directly reduce the cost.
Excellent particle shape Impact crushing principle enables the machine to produce the best particle-shape aggregates.
hydraulic device and convenient maintenance The V6S series sand making machine was designed with hydraulic cover lifting device, this makes it more convenient to inspect and maintain the crushing cavity’s inner parts. Hydraulic lifting device and motor seat adjustment device can significantly reduce downtime.
Safe and reliable automatic detection system The alarm device will give an alarm if the machine is malfunction, then the equipment will shutdown quickly to avoid damaging the machine .
Thin oil lubrication and automatic maintenance. The most advanced oil lubrication station in China, Adopting two complementary oil pumps and automatic detection of oil , in which when no oil flow and oil pressure is detected, it will automatic self-protect.. Oil cooling and heating device makes sure that the bearing lubrication is always in the best condition, which extends maintain interval and service life of the bearing.
Flexible application, one machine for multiple purposes ; The flexible conversion between "stone-hit-stone" and "stone-hit-iron" crushing mode is applied. multi-purpose designed V6S can meet different requirements in sanding making and aggregate shaping.
Technical parameters
Model |
6s-9832 | 6s-1250 | 6s-1263 | 6s-1371 | ||
Capacity(T/H) | Center and ring feeding |
298-335 | 520-650 | 580-720 | 580-800 | |
Center feeding | 236-268 | 325-400 | 468-518 | 468-560 | ||
Max. feeding length (mm) |
Soft material | <50 | <50 | <50 | <50 | |
Hard material | <45 | <45 | <45 | <45 | ||
Rotation speed (r/min) |
1360-1510 | 1100-1310 | 980-1180 | 980-1180 | ||
Power of two motors (kw) |
160×2 | 250×2 | 315×2 | 355×2 | ||
Dimension(mm) | 5110×2890×3010 | 5600×2990×3200 | 5600×3040×3290 | 5600×3060×3310 | ||
Power source | 380V 50Hz | |||||
Monitoring range of vibration sensor | 0.1-20mm/ continuous and adjustable | |||||
Hydraulic lubrication station | Motor power (kw) |
2×0.31 | ||||
Safety | Complementary double pumps ensure oil supply; no oil flow; no-oil-hydraulic-automatic-protection; water cooling; heating boot of motor in winter |
|||||
Dimension (mm) |
820×520×1270 | |||||
Power of tank heater (kw) |
2 |

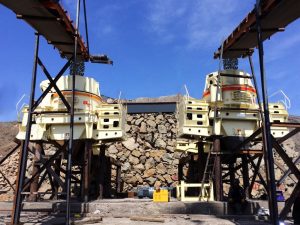

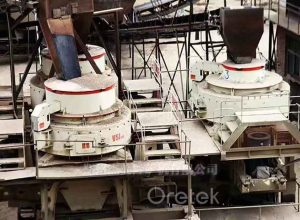

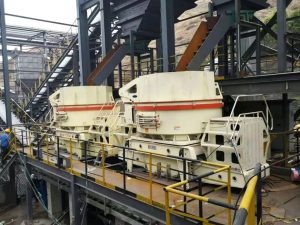

V6S Sand Making Machine Station factory
Our company is a professional manufacturer of crushing equipment. The company’s senior engineers tailor-made for each customer, scientifically select equipment and do not rework, to ensure that the equipment selected for customers is reasonable and affordable, with stable operation and high efficiency.
Oretek provides you with a full set of mine equipment and services. If you are interested in our company and products, you are welcome to come to the factory to inspect. We will arrange for you to visit the crushing site to intuitively experience the quality of the high quality product!
